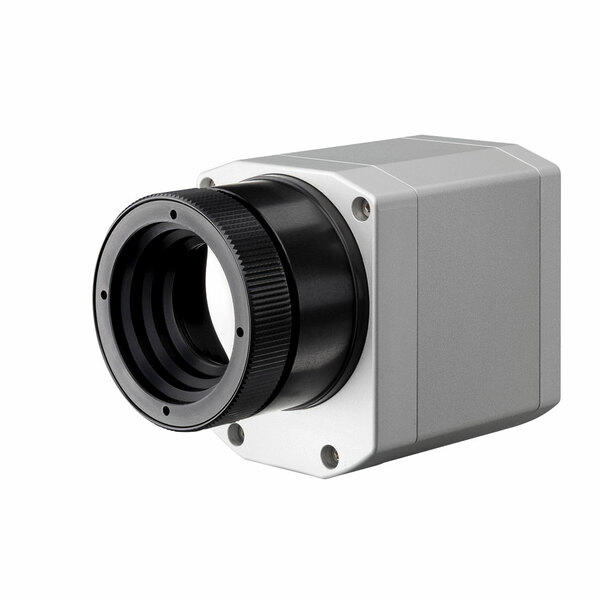

Optris Pi 450 G7 IR Camera

Pricing starting at $7190, for formal quote complete application sheet below
NOTICE: To receive a quote with excellent discounted pricing please call our team at (866) 451-2257 or fill out our online Application Sheet here:

Optris Application Sheet

SKU:
OPTPI450G7O-
Weight:
5.00 LBS
Qty:

Infrared camera optris PI 450 G7

Order Includes: USB camera incl. 1 lens, USB cable (1 m [3.3 ft]), table tripod, PIF cable incl. terminal block (1 m [3.3 ft]), software package optris PIX Connect, rugged outdoor case

Thermal imaging solution for the glass industry

The optris® PI 450 G7 infrared camera is the first industry-specific thermal imaging camera in the PI series. Designed specially for the glass industry, this camera measures in only one spectral range.

The typical parameters of Optris cameras – high measurement speed (80 Hz), high optical resolution (640 x 480 pixels) and compact design – were kept to allow for the capturing of real-time thermal images of everything from glass beads right up to large panes.

The IR camera is used as a line-scan camera in the field of sheet glass production and offers various possibilities for documenting and controlling the process.

This compact, high-performance infra-red camera for the glass industry is available with interchangeable lenses and industrial accessories. The comprehensive license-free software package “optris PIX Connect” is included in the price.

Key Features:

  • Temperature range: 200 °C to 1,500 °C (392 °F to 2732 °F)
  • Spectral range: 7.9 µm
  • Frame rate: up to 125 Hz
  • Size: 46 mm x 56 mm x 90 mm (1.81 in 2.20 in x 3.54 in)
FeatureDetails
Detector FPA, uncooled (25 µm x 25 µm)
Optical resolution 382 x 288 pixels
Spectral range 7.9µm
Temperature ranges

200 ... 1500 °C (392 ... 2732 °F)

Frame rate 80 Hz / switchable to 27 Hz
Optics 13° x 10° / f = 41 mm (f = 1.6 in) or
29° x 22° / f = 18.7 mm (f = 0.7 in) or
53° x 40° / f = 10.5 mm (f = 0.4 in) or
80° x 56° / f = 7.7 mm (f = 0.3 in)
Max. FOV: 98° / 478 pixels
(diagonal scanline / 80° optics)
Thermal sensitivity (NETD) 130 mK
Accuracy ±2°C or ±2% (whichever is greater)
PC interface USB 2.0 / optional USB to GigE (PoE) interface
Sighting range 0 ... 250 °C (32 ... 482 °F)
Process interface (PIF), standard

0 – 10 V input, digital input (max. 24 V), 0 – 10 V output

Process interface (PIF), industrial

2x 0 – 10 V input, digital input (max. 24 V),
3x 0 – 10 V output,
3x relay (0–30 V/ 400 mA), fail-safe relay

Ambient temperature (TAmb) 0°C...70°C
Enclosure (size / rating) 46 mm x 56 mm x 90 mm IP 67 (NEMA 4)
Weight 320 g
Shock / vibration1) IEC 60068-2
Tripod mount 1/4-20 UNC
Cable length

USB: 1 (standard) / 5 m / 10 m / 20 m
(3.3 / 16.4 / 32.8 / 65.6 ft)
5 and 10 m (16.4 and 32.8 ft)
also as HT cable (180 or 250 °C [356 or 482 °F])

Power supply USB powered

1) For more details see operator‘s manual
