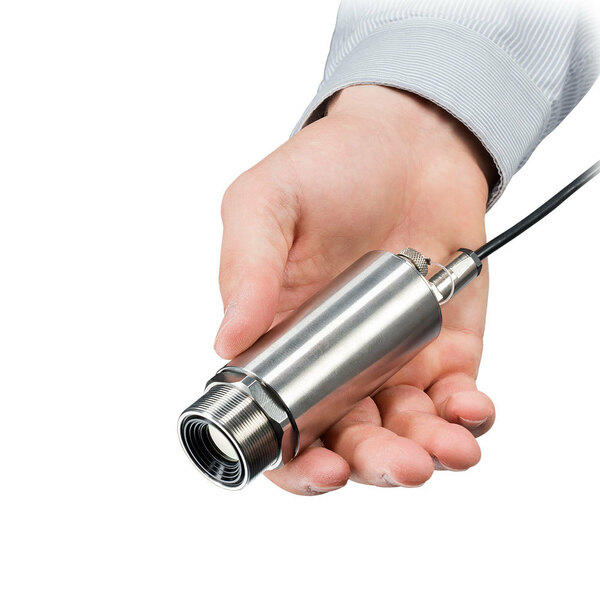

Optris Xi 400 Spot IR Camera

Pricing starting at $2400, for formal quote complete application sheet below
NOTICE: To receive a quote with excellent discounted pricing please call our team at (866) 451-2257 or fill out our online Application Sheet here:

Optris Application Sheet

SKU:
OPTXI40LT-
Weight:
5.00 LBS
Qty:

Compact spot finder IR camera Xi 400

Order Includes: Process imager Xi, USB cable (1 m), Standard PIF cable (1 m) incl. terminal block, Mounting bracket with nut, Software package optris® PIX Connect

A Hybrid Design

The newly developed optris Xi 400 combines the benefits of a robust, compact pyrometer and an advanced IR camera. The 80 Hz frame rate allows for the monitoring of fast thermal processes, even including a line-scan function. The spot finder IR camera has an optical resolution of 382 x 288 pixels and comes with an extensive ready-to-use package - including a versatile image processing software.

Due to its compact design and an affordable pricing, the new optris Xi spot finder IR camera is ideally suited for OEM applications.

Key Features:

  • Small sized rugged camera with motorized focus
  • Distance-to-spot-size ratio up to 390:1
  • Frame rate: 80 Hz
FeatureDetails
Detector FPA, uncooled (17 µm pitch)
Optical resolution 382 x 288 pixels
Spectral range 7.5 - 13 µm
Temperature ranges -20 °C...100 °C
0 °C...250 °C
(20) 150 °C...900 °C 1)
Frame rate 80 Hz
Optics 18° x 14° (f = 20)
29° x 22° (f = 12.7)
53° x 38° (f = 7.7)
80° x 54° (f = 5.7)
Focus Manual motor focus
Distance-to-spot ratio 390:1 (18° optics)
Thermal sensitivity (NETD) 80 mK
Accuracy ±2°C or ±2% (whichever is greater)
Repeatability ±1 °C or ±1 %
PC interface  USB 2.0 / optional USB to GigE (PoE) conversion
Direct output/input 1x analog output (0/4-20 mA) / 1x input (analog or digital); optically isolated
Process interface (PIF) 3x analog outputs (0/4–20 mA or 0–10 V) or alarm OUT (relays) / 3x inputs (analog or digital) / fail-safe (LED and relay); stackable up to 3 PIFs; optically isolated
Ambient temperature (TAmb) 0°C...50°C
Enclosure (size / rating) 36 mm x 100 mm (M30x1 thread) / IP 67 (NEMA 4)
Weight 200 g
Shock / vibration IEC 60068-2-6 (sinus shaped)
IEC 60068-2-64 (broadband noise)
Tripod mount 1/4-20 UNC
Cable length USB: 1 m (standard), 3m, 5 m, 10 m and 20 m
Ethernet / RS485: 100 m
Power supply USB powered
1) Accuracy statement effective from 150 °C
