Optris

Optris CT Pyrometer

Call or Request a Quote Today.

SKU:
OPTCT-
Request A Quote

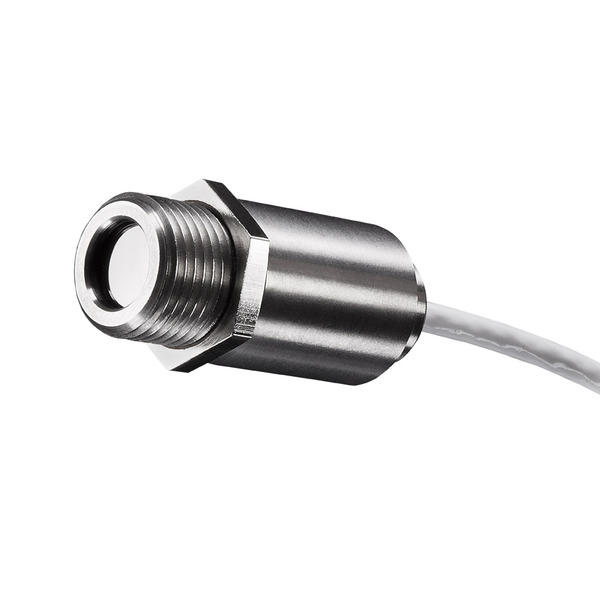

Optris CT Pyrometer

Precise non-contact temperature measurement

The pyrometer optris CT LT is equipped with one of the world’s smallest infrared sensors with a high optic resolution of 22:1. Additionally, it offers a high variability due to selectable analog outputs as well as several digital interfaces in the electronics box.

The extended version, the pyrometer CTex LT, is additionally equipped with Zener double barriers (for employment in explosion-prone areas).

Key Features:

  • Temperature range: -50 °C to 975 °C (-58 °F ... 1787 °F)
  • Spectral range: 8 to 14 µm
  • Response time: 150 ms
  • Price starts from $280.00 (plus VAT)
FeatureDetails
Environmental rating IP 65 (NEMA-4)
Optical resolution 22:1 (precision glass optics)
15:1 (precision glass optics)
2:1 (with flat front window)
Spectral range 8 – 14 μm
Temperature ranges

–50 °C to 975 °C (LT22) (–58 °F to 1787 °F)
–50 °C to 600 °C (LT15) (–58 °F to 1112 °F)
–50 °C to 600 °C (LT02) (–58°F to 1112 °F)

Temperature resolution (display) 0.1 K
Output / analog

Channel 1: 0 / 4 – 20 mA, 0 – 5 / 10 V, thermocouple J, K
Channel 2: sensind head temperature
(–20 °C to 180 °C (–4 °F to 356 °F) as 0 – 5 V or 0 – 10 V),
alarm output

NETD 2), 3) 0.05 K (LT22 / LT15)
0.1 K (LT02)
System accuracy 1), 2)
(at ambient temp. 23 ±5 °C)
(23 ±41 °F)

±1.0 % or ±1.0 °C (±1.8 °F)

Repeatability 1), 2)
(at ambient temp. 23 ±5 °C)
(23 ±0.5 °F)

±0.5 % or ±0.5 °C (±0.9 °F)

Current draw Max. 100 mA
Inputs

Programmable functional inputs for external emissivity adjustment, ambient temperature compensation, trigger (reset of hold functions)

Ambient temperature (TAmb) –20 °C to 180 °C (–4 °F to 356 °F)
(130 °C (266 °F) to LT02) (sensing head)
0 °C to 85 °C (32 °F to 185 °F) (electronics)
Weight 40 g (1.4 oz) (sensing head) /
420 g (14.8 oz) (electronics)
Shock / vibration
IEC 60068-2-27 (25 G and 50 G) / IEC 60068-2-6 / -64
Cable length

1 m (standard), 3 m, 8 m, 15 m
(3.3 ft (standard), 9.8 ft, 26.2 ft, 49.2 ft)

Power supply 8 – 36 V DC
