Optris Pi 05M IR Camera

Pricing starting at $4550, for formal quote complete application sheet below

SKU:
OPTPI05MLO-
Weight:
5.00 LBS
  • Customer Success

    We know our products!

  • Technical Specialists

    Product and System Support

  • Guaranteed Fit

    Right tool for the job

  • Free US Shipping

    Purchases Over $100

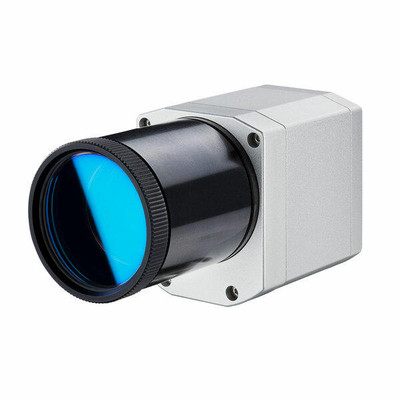

Optris Pi 05M IR Camera

Infrared camera optris Pi 05M

Order Includes: USB camera with 1 lens, USB cable (1 m) (3.3 ft), PIF cable (1 m) (3.3 ft) incl. terminal block, Aluminum case, Lens protection tube incl. protective window, Table tripod, Software package optris® PIX Connect, Optional: Cooling Jacket, High temperature cable

Short wavelength and ultra compact

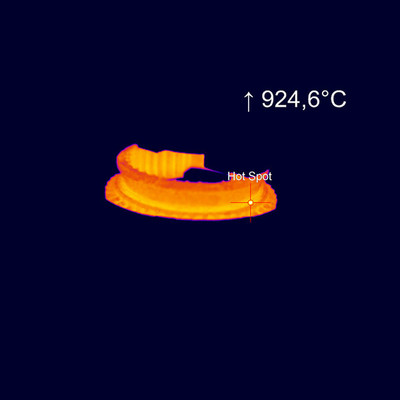

The spectral range of 500 to 540 nm of the newly developed thermal imager optris® PI 05M decreases measurement errors resulting from unknown or changing emissivities. Due to the spectral range as well as the continous measurement range from 900 to 2000 °C (1652 to 3632 °F), the compact infrared camera is perfectly suited for temperature measurements of molten metals.

The frame rate of 1 kHz as well as the high optical resolution enable an optimal adaption to the respective application.

Key Features:

  • High dynamic CMOS detector with up to 764 x 480 pixels resolution
  • Wide measurement range: 900 °C to 2000 °C (1652 °F to 3632 °F) without sub-ranges
  • Up to 1 kHz frame rate for fast processes
  • Real-time analog output with 1 ms response time
  • Extensive software package and SDK included
  • 1 kHz linescanning function possible
