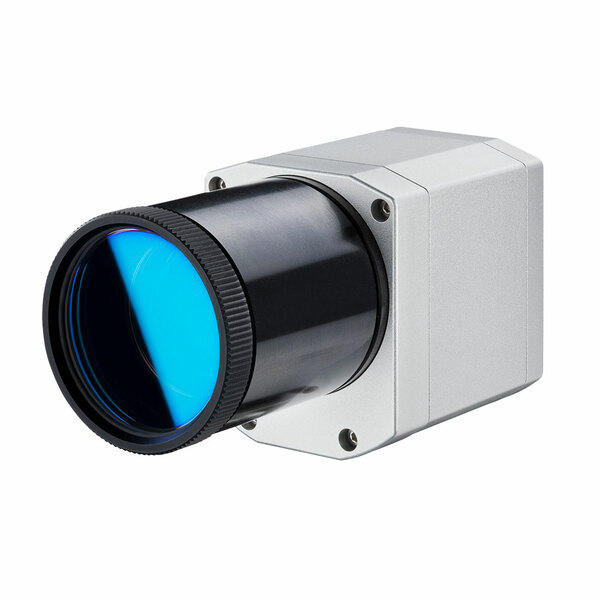

Short wavelength infrared camera Optris Pi 1M

The newly developed thermal camera Optris PI 1M is especially suited for temperature measurements of metals, as these exhibit a distinctly higher emissivity at the short measurement wavelength of 1μm than at measurements in the previously conventional wavelength range of 8-14 μm.

In parallel with the visualization of a thermal process, the high-performance sensor electronics allow a short reaction time of 1ms for the displaying of the temperature information of the center pixel.

Key Features:

• High dynamic CMOS detector with up to 764 x 480 pixels resolution
• Wide measurement ranges from 450 °C to 1800 °C (842 °F to 3272 °F) without sub-ranges
• Up to 1 kHz frame rate for fast processes
• Real-time analog output with 1 ms response time
• Extensive software package and SDK included
• 1 kHz linescanning function possible
