Optris Pi 1M IR Camera

Pricing starting at $3870, for formal quote complete application sheet below

SKU:
OPTPI1MLO-
Weight:
5.00 LBS
Shipping:
Free Shipping
  • Customer Success

    We know our products!

  • Technical Specialists

    Product and System Support

  • Guaranteed Fit

    Right tool for the job

  • Free US Shipping

    Purchases Over $100

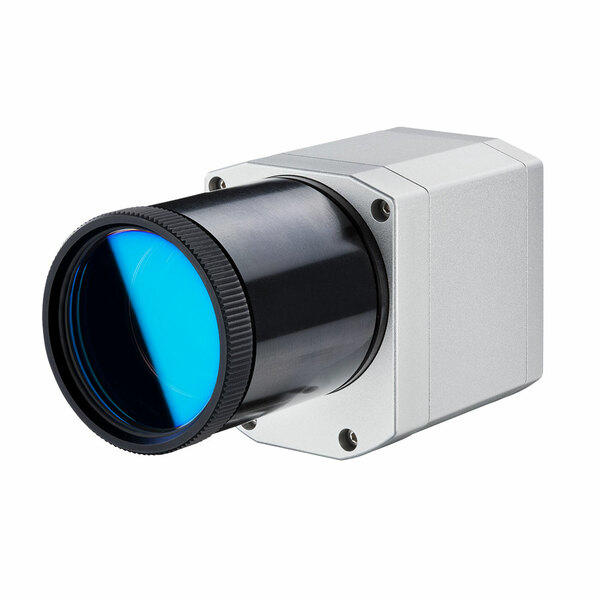

Optris Pi 1M IR Camera

 Infrared camera optris Pi 1M

Order Includes: USB camera (1 lens), USB cable (1 m [3.3 ft]), PIF cable (1 m [3.3 ft]) incl. terminal block, Optional: Cooling Jacket, Lens protection tube incl. protective window, Table tripod, Software package optris® PIX Connect, Aluminum case high temp. cable

Short wavelength infrared camera optris Pi 1M

The newly developed thermal camera optris® PI 1M is especially suited for temperature measurements of metals, as these exhibit a distinctly higher emissivity at the short measurement wavelength of 1μm than at measurements in the previously conventional wavelength range of 8-14 μm.

In parallel with the visualization of a thermal process, the high-performance sensor electronics allow a short reaction time of 1ms for the displaying of the temperature information of the center pixel.

Key Features:

  • High dynamic CMOS detector with up to 764 x 480 pixels resolution
  • Wide measurement ranges from 450 °C to 1800 °C (842 °F to 3272 °F) without sub-ranges
  • Up to 1 kHz frame rate for fast processes
  • Real-time analog output with 1 ms response time
  • Extensive software package and SDK included
  • 1 kHz linescanning function possible
