SYTIS Bi-Spectral Bullet Camera Thermal and Optical

Call for pricing and configuration.

SKU:: IIS-BB4030-F

Current Stock:

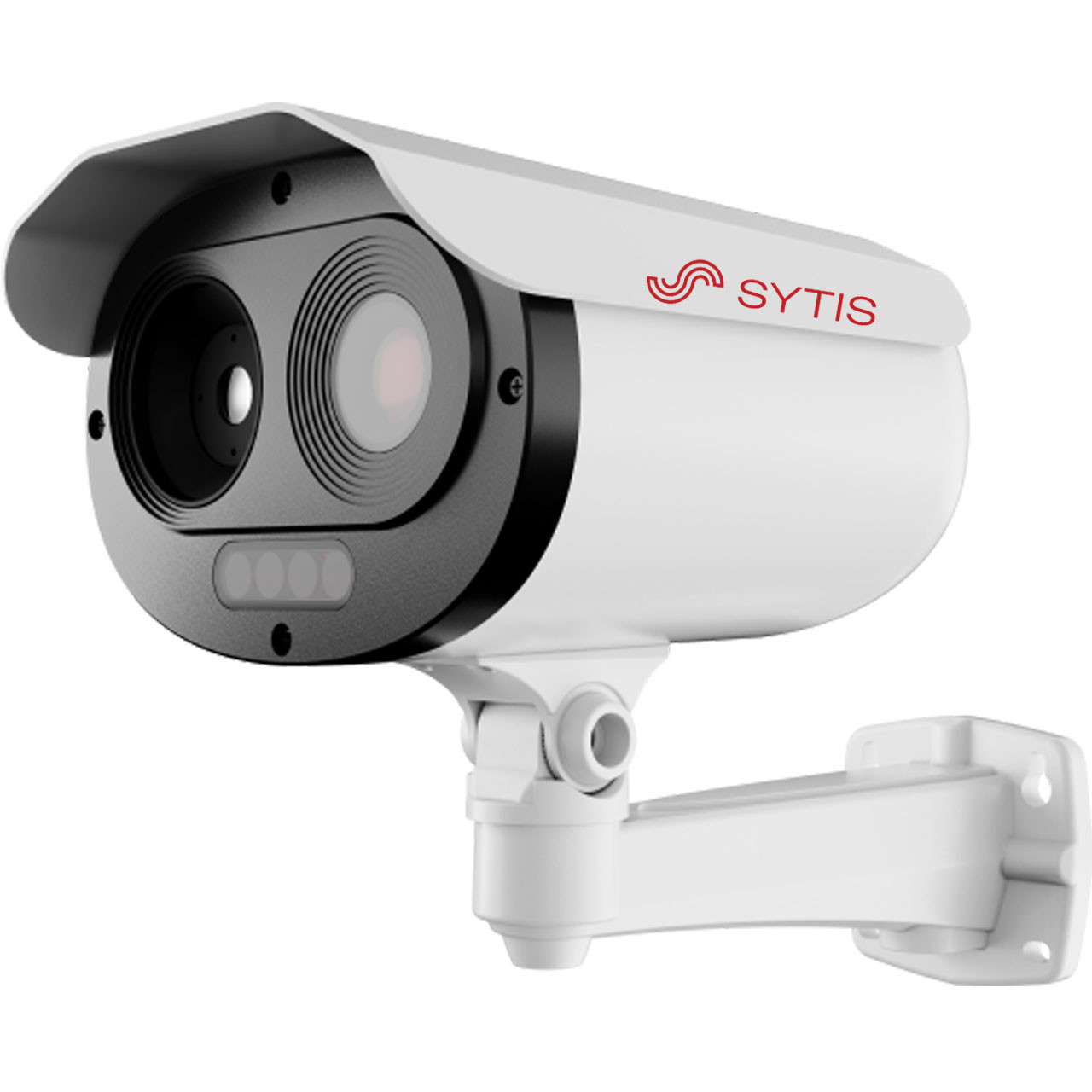

SYTIS Bi-Spectral Bullet Camera Thermal and Optical

Infrared Inspection Systems Bullet Bi-Spectrum Thermal Cameras are perfect for asset monitoring and perimeter security. Powerful onboard analytics can detect human and vehicle intrusions. Radiometric Infrared can detect objects even in the no light environments. Paired with a powerful 4mp optical lens you will have total visibility for any application. Software (VMS), Web and Mobile is included with all of our cameras.

Features:

Bi Spectrum: optical and radiometric infrared
Custom Alarms: temperature, email, audible, and visible
Temperature Display: maximum, average, minimum
High Resolution: optical 4mp and thermal 400x300
Motorized Focus: semi-auto, manual
Onboard AI: human, vehicle, fire and smoke detection
Intelligent Analysis: intrusion, line crossing, enter and leave area
Targeted Temperature Measurment: spot, line, area, and polygons
Wide Temperature Measurment Range: -20°C ~ 150°C (-4°F ~ 302°F)
All Weather Application:IP66

Specifications:

Thermal Module

Image Sensor: vanadium oxide uncooled focal plane arrays
Resolution: 400 × 300
NETD: 40 mK
Focal Length: 8mm, 15mm, 25mm, 35mm, 50mm
Zoom: fixed

Optical Module

Image Sensor:CMOS
Resolution: 1920 × 1080
Focal Length: 8mm

Resource Information

TC-90 unit with Optical / Thermal with Alarms easy to preset, SD card. Easy to use IIS Infraspec Reporting Software combined accessories manual and cables! All in on box for easy installation. NDAA Compliant. Software included, no Licensing fee with automatic updates!

Detector Type:	Uncooled VOx Micro bolometer 256×192
Resolution:	256(H)×192(V), Image can be scaled up to 704×576
Thermal Sensitivity:	≤ 65mK @ F1.0, 300K
Spectral Range:	8~14um
