Optris CX Pyrometer

Pricing starting at $555, for formal quote complete application sheet below
NOTICE: To receive a quote with excellent discounted pricing please call our team at (866) 451-2257 or fill out our online Application Sheet here:

Optris Application Sheet

SKU:
OPTCX-
Weight:
5.00 LBS
Qty:

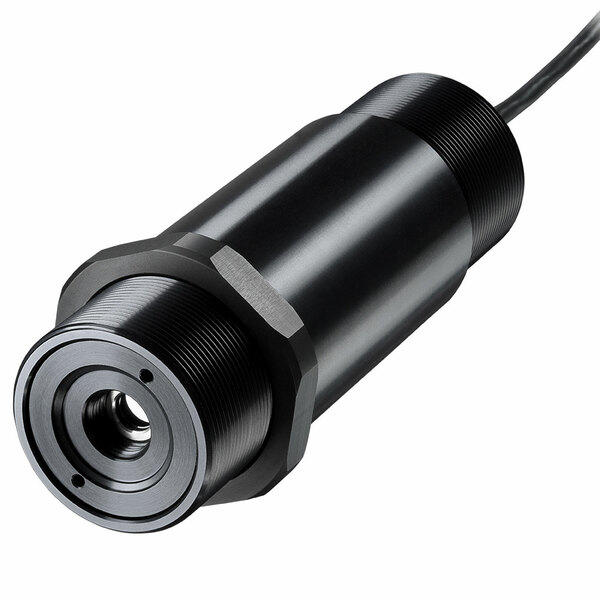

Pyrometer optris CX LT

Two wire infrared sensor

The infrared pyrometer optris CS LT is perfectly suited for temperature measurement in small and narrow environments. The robust measuring heads have been developed for use in temperature ranges from -40°C to 1,030°C (– 40°F to 1886 °F) and can be employed in ambient temperatures of up to 80°C (176 °F) without additional cooling.

The inexpensive IR pyrometers are perfectly suited for OEM solutions. They also work ideally for multiple employments of infrared measurement points. The plug version optris CSmed LT additionally allows for a quick assembly and removal, e.g. for regular calibration of medical devices.

Key Features:

  • Temperature range:  -40 °C to 1,030 °C (– 40°F to 1886 °F)
  • Spectral range: 8 to 14 µm
  • Response time: 25 ms
FeatureDetails
Environmental rating IP 65 (NEMA-4)
Optical resolution 22:1
Spectral range 8 – 14 μm
Temperature ranges

–30 °C ... 900 °C
(–22 °F ... 1652 °F)

Temperature resolution 0.2 K
Output / analog

0 / 4 – 20 mA

System Accuracy
(at ambient temp. 23 ±5 °C)
(23 ±41 °F)
±1 % or ±1.5 °C1)
(±1 % or ±2.7 °F1))

Repeatability (at ambient
temp. 23 ±5 °C) (23 ±41 °F)

±0.75 % or ±0.75 °C
(±0.75 % or ±33.4 °F)

Power supply 5 – 30 V DC
Signal processing

Peak hold, valley hold, average; extended hold
function with threshold and hysteresis

Ambient temperature (TAmb) -20°C...75°C
Weight 350 g
Shock / vibration
IEC 68-2-27: 50 G, 11 ms, any axis /
 IEC 68-2-6: 3 G, 11 – 200 Hz, any axis
Cable length

8 m (26.2 ft)

Power supply 5 – 30 V DC

1) Whichever is greater
